Polyisocyanurate (PIR) Panels

Polyisocyanurate panels can only be produced on a fully-automated continuous production line. This ensures the even distribution of the PIR foam, which cannot be done manually.

We are the first and only PIR continuous production line in the ASEAN region for cold stores purposes. All our PIR panels are manufactured in our own premises to ensure that tight control and stringent quality standards are met.

UR®  PIR panel is FM Global (FM) approved. Our panels obtained Class 1 fire rating of insulated wall or wall and roof/ceiling panels, interior finish materials or coatings, and exterior wall systems according the FM Approvals Standard 4880/4881. This rating for our panels is valid without height restrictions.

All panels can be installed vertically or horizontally.

PIR Features

  • Superior fire resistance
  • Stronger parallel compression strength
  • More energy saving for end users
  • Faster delivery time
  • No restrictions on length in a single panel
Specifications ( PIR )

Dimension

1150 mm width x any desired length

Thickness

50 mm / 75 mm / 100 mm / 125 mm / 150 mm / 180 mm / 200 mm / 250 mm

Weight Varies in accordance to thickness

Skins

Minimum* 0.6 mm (0.02 in) thick painted galvanized steel exterior and interior facers

 *Other colours and finishes are available





  With a continuous PIR automated line, there are now no restrictions on length of panels that can be produced. This enables us to better cater to our customers' needs.

Using patented technology with precision engineering techniques, we are committed to providing the best in the industry.

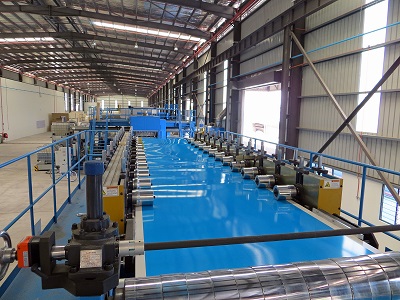

Illustration of panels that are cut at pre-set intervals ( in an enclosed area) and automated stacking of PIR panels to ensure that quality and safety standards of our panels are met.
